FSW17K
Hydraulic Flange Spreading Wedge
A hydraulic Flange Spreading Wedge actuated by 700bar (10,000psi) hydraulics.

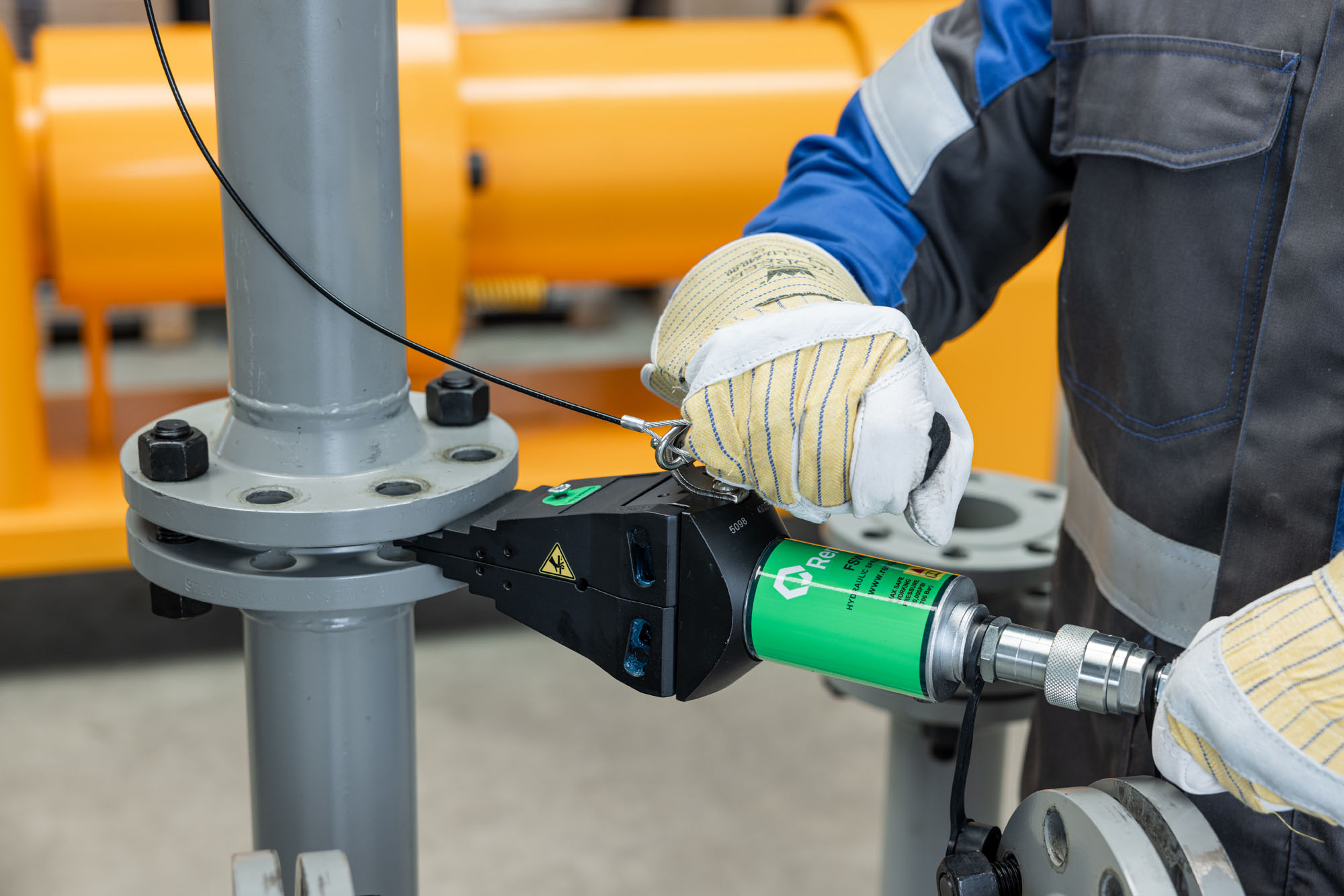

The FSW17 flange spreading wedge can enter a flange joint access gap as small as 6mm (0.24”) and produce a maximum force of 326kN (32.6T) when used in pairs (as recommended) to push the mating faces of flanges apart.
The FSW17 can create a gap up to 81mm (3.19”) between flange faces with the stepped blocks fitted facilitating the replacement of gaskets, seal ring’s, or other flange face maintenance and testing.
- 100% Load/Pressure tested and certified
- High durability, High Quality, Low Maintenance design
- Tool Weight: 7Kg (15.4lbs)
- Max Spreading Force: 163kN (16.3T) (326kN (32.6T) when used in pairs)
- Spreading Distance: 6mm (0.24") to 81mm (3.19") (when used with stepped blocks)
- Robust Moulded Case for easy transportation and storage
| Kit weight: | Kit content: |
| 12Kg (26.5lbs) | 1 x FSW17 Tool |
| 1 x Safety Block | |
| Kit dimensions: | 1 x Safety Lanyard |
| 580mm x 340mm x 180mm | 2 x Stepped Blocks with Securing Screws and Allen Key |
| (22.8" x 13.4" x 7.1") | 1 x Instruction Manual |
| 1 x Robust Moulded Carry Case | |
| Tool weight: | |
| 7Kg (15.4lbs) | |
| Tool dimensions: | |
| 76mm x 155mm x 350mm | |
| (3.0" x 6.1" x 13.8") |
