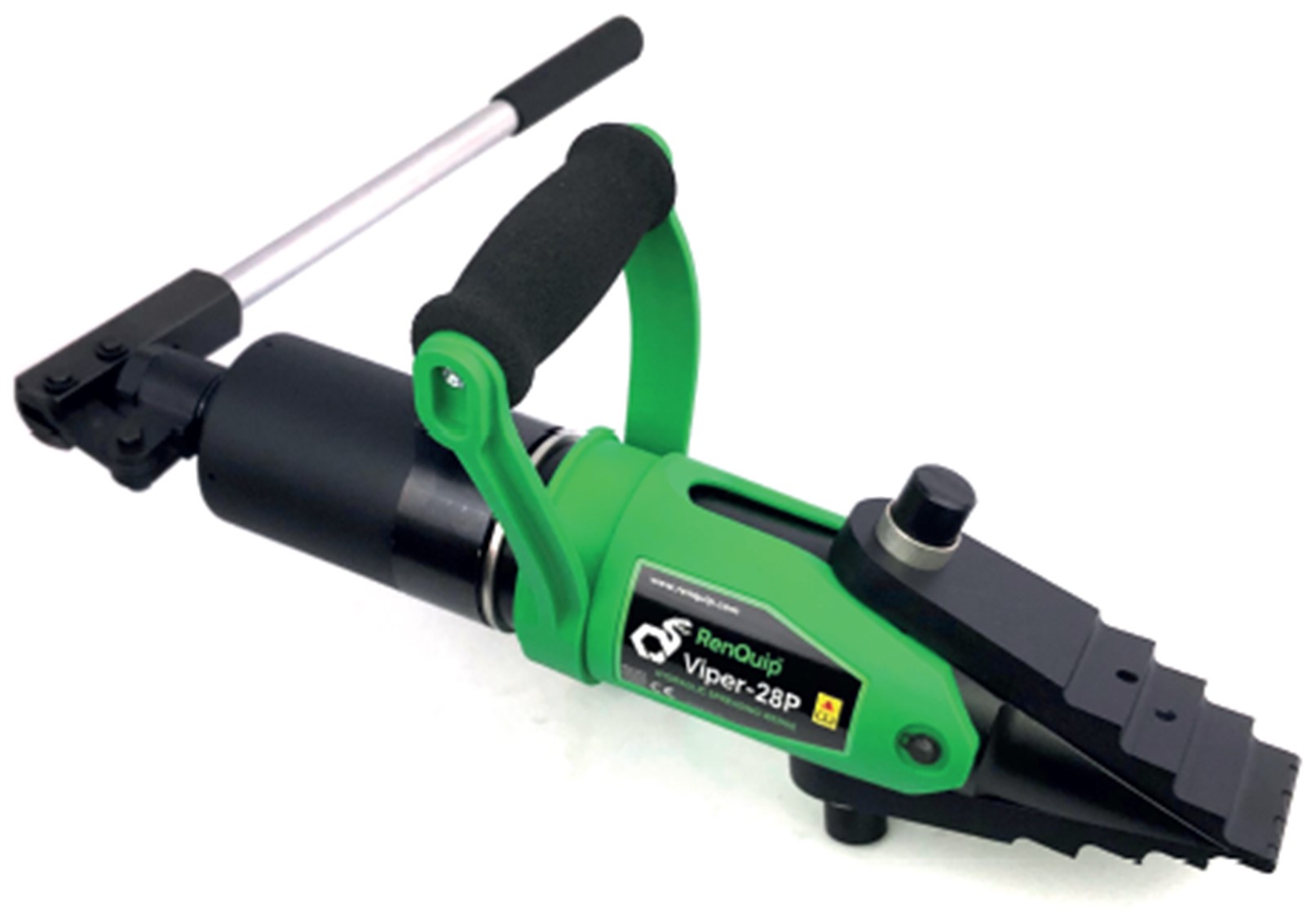

VIPER-28P

The Viper-28P is RenQuip’s latest revolutionary Flange Spreading Wedge with integral pump. Capable of entering a 5mm access gap and producing a spreading force of 277kN (27.7T)
per tool yet weighs only 7.5Kg (16.5lbs).


• Max Spreading force 277kN (27.7T) (554kN (55.4T) when used in pairs)
• Lightweight 7.5Kg (16.5lbs)
• 5mm Access Gap
• Spreading distance 5mm to 124mm (when used with stepped blocks)
• 53.5 mm jaw width
• No pinch points
• Safety block set - aluminium lightweight
• Stepped blocks to increase max. spread
• Safety lanyard to prevent dropped tool
• 100% Load/Pressure tested and certified
• High durability high quality low maintenance design
•  Robust moulded case for easy transportation and storage


Kit Content:

• 1 x VIPER-28P Hydraulic Flange Spreading Wedge with Integral Pump
• 2 x Stepped Blocks
• 1 x Safety Block Set
• 1 x Stepped Safety Block
• 1 x Safety Lanyard
• 1 x Robust moulded carry case
• 1 x Instruction Manual


Kit weight:
12.5Kg (27.6lbs)


Kit Dims.:
580mm x 340mm x 295mm (22.8” x 13.4” x 11.6”)


Tool Weight:
7.5Kg (16.5lbs)


Tool Dims.:
75mm x 133mm x 435mm (3.0” x 5.2” x 17.1”)
